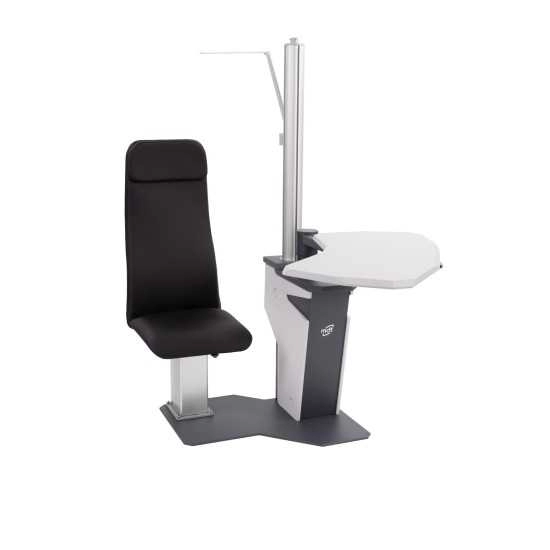

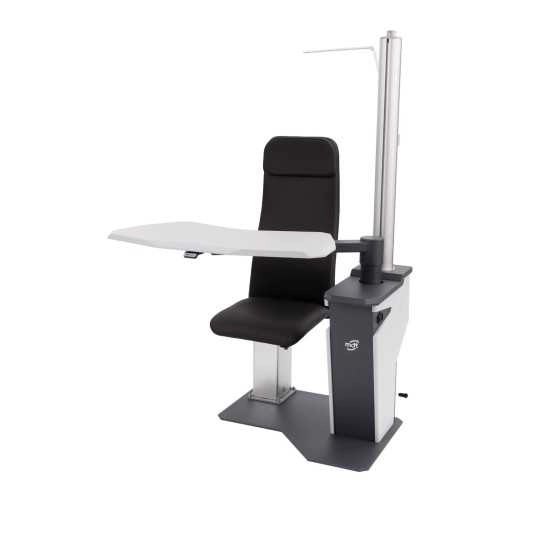

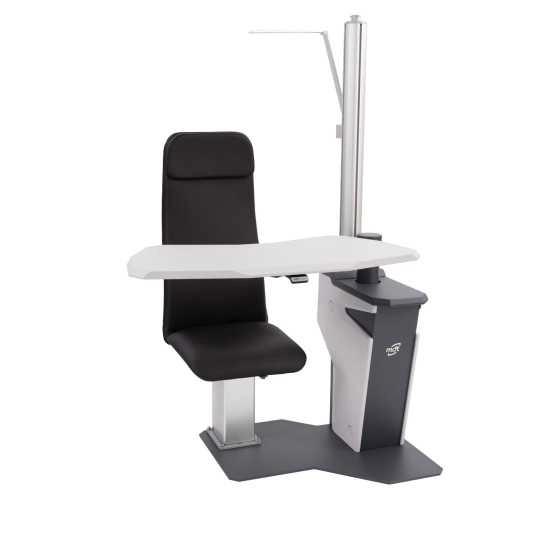

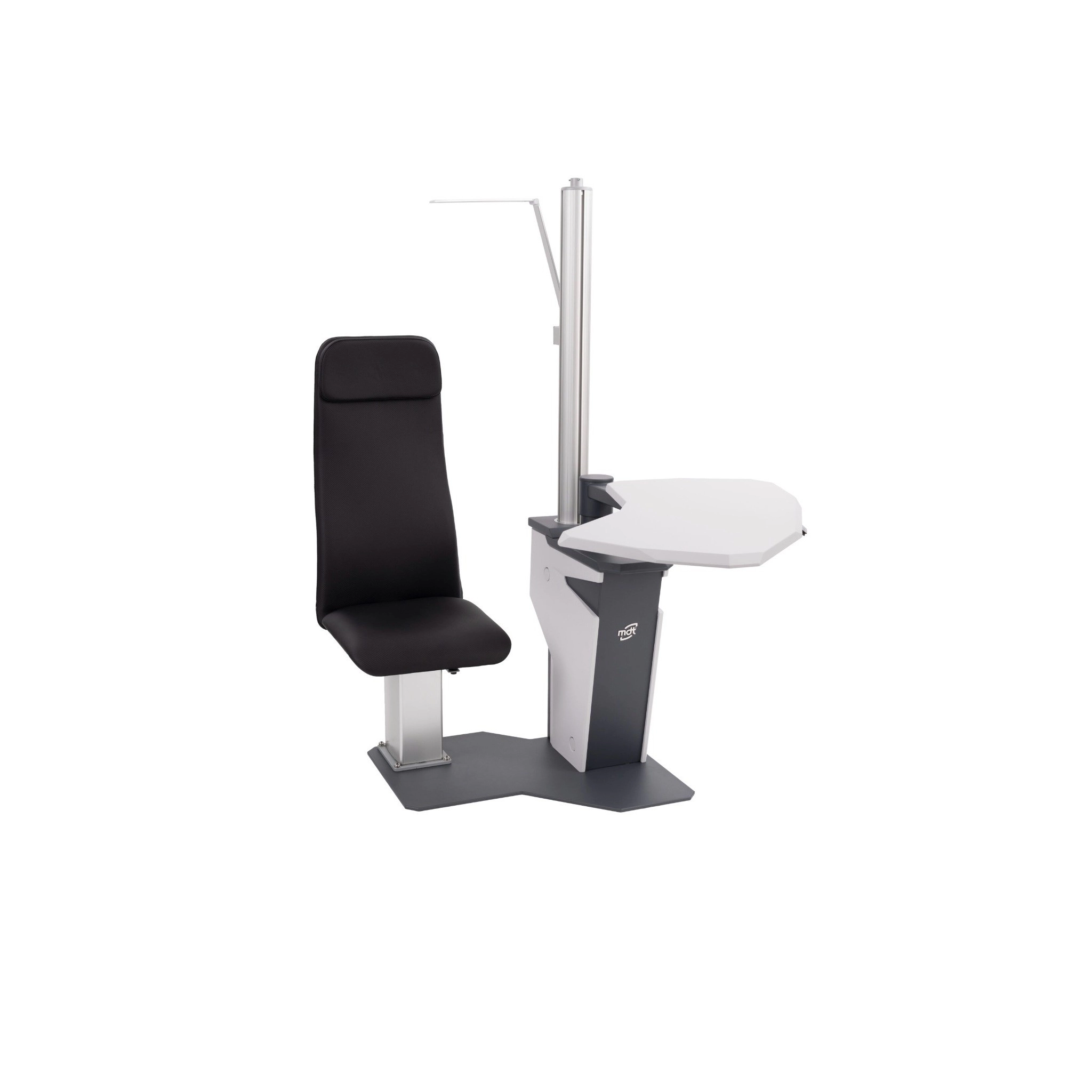

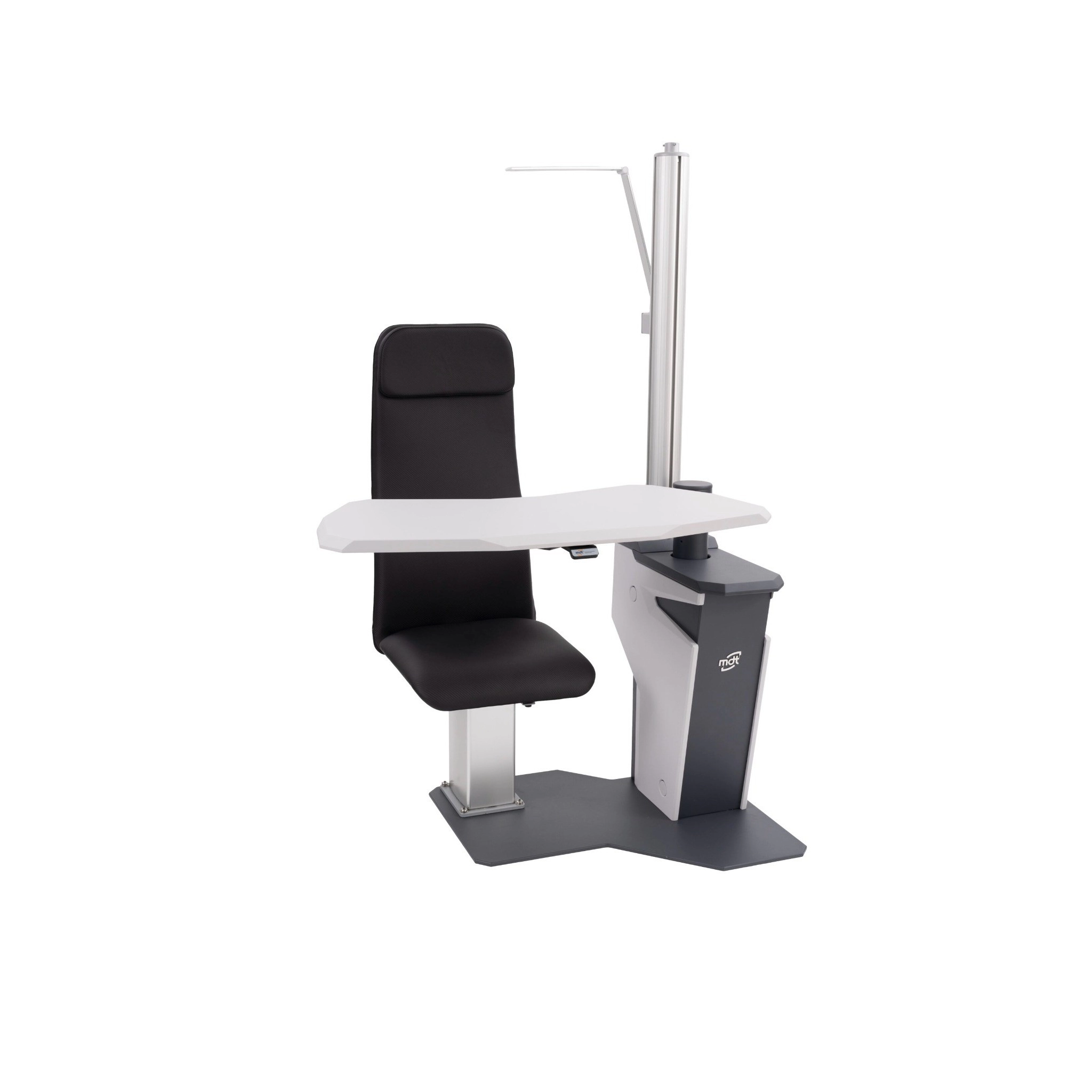

Ophthalmic Unit MDT UniQ

• Equipped with electrically elevated SLIM chair (available in black upholstery only)

• Convenient chair height adjustment switch on the table top

• V-shape, fixed height, non-extendable table top for 2 instruments, with optional universal chin rest adapter

• ALU post suitable for installation of both, chart projector and PA-1000 phoropter arm (option)

• Table top electromagnet lock switch hidden under the auxiliary table top

• Efficient, foldable and revolving LED lamp with a manual switch

• Right-handed setup as a standard, left-handed available upon order or during on-site installation

• Side casings and table top painted in RAL7047

• Front casing and auxiliary table top painted in RAL7024

• Steel base powder coated in RAL7024 EU Declaration of Conformity provided

Dimensions SLIM CHAIR

Width 1 145mm

Depth 1 100 - 1 610mm (±10)

Height 1 630mm

Chair height working range 430 - 630mm (±5)

Table top dimensions W 944/900/735mm x D 445/410/445mm

Table top height (fixed) 861mm

Table top working range (height adjustable) n/a

Technical specification

Supply voltage 100 - 240V AC, 50/60Hz

Power 280VA

LED lamp power 9W

Power supply cord 3m with UniSchuko plug

Max. table top load 50kg

Max. chair load 150kg

Max. power of devices connected to 2x C-13 sockets 450VA

Packaging 1 pallet, 120x80x160cm, ca. 150kg (gross)
